Product status: conventional product
Place of Origin: China (Guangzhou)
Product Model: LY-101M 90W LED Moving Head Pattern Light
Product power: AC220V/110V, 50/60Hz
Obtained certification: CE, ROSH, quality inspection report
Product packaging: carton (air box optional)
Brand Name: LY Lingyue Optoelectronics
Production method: OEM, ODM, OBM
Product model: LY-101M
Product name: 90W LED moving head spot light
Product parameters:
Rated voltage: AC100V~240V ±10﹪, 50Hz～60Hz
Power: 120W
LED light source: one 90W high brightness LED
LED life: 6-10 million hours
Electronic zoom range: 3°-38°
Rotation angle: 540° in horizontal direction, 270° in vertical direction
Control mode: DMX512, master-slave, self-propelled, voice control
Channel mode: 12 DMX512 channels
Stroboscopic: 1-20 times/sec, freely select the stroboscopic speed from slow to fast
Dimming: 0-100% linear dimming
Atomization: 0%-100% linear atomization, 1 independent atomization effect
Pattern plate: 1 fixed pattern plate with 9 patterns + 3 circles, 1 rotating pattern plate with 7 glass patterns + small circles
Color wheel: 7 colors + white light
Prism: 4/8 prism with high-speed rotation function

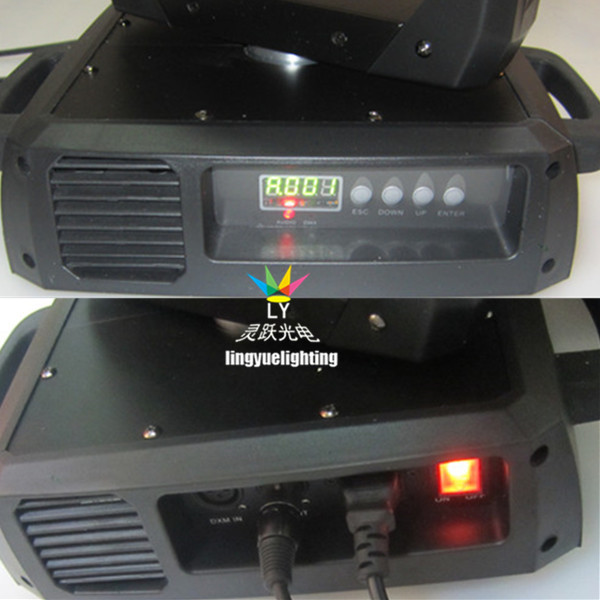

Display: LCD liquid crystal display + button
Waterproof rating: IP20
1 set/carton packing size: 35x39x37cm gross weight: 8.3kgs
2 sets/carton packing size: 73x39x40cm gross weight: 17.5kgs
Certification and report: CE/ROHS/ISO9001/quality inspection report
Standard accessories: hardware hook, aluminum light hook, signal wire, power cord, safety rope, instruction manual
Installation method: standing, upside down, side hanging
Customization requirements: Customization is not supported for less than 50 units, and the delivery time for customized models will be increased, 10-15 days (customization such as light source, silk screen LOGO, packaging, etc.)
Scope of application: KTV, music bar, bar, disco, nightclub, evening party, hotel wedding, large-scale commercial performance, etc.
