Product Name: 500W LED beam spot wash
-
-
Scan to add WeChat customer service to provide more comprehensive services
Parameter
Lighting Effect
Video Show
Applications
Download
Product model: LY-500R

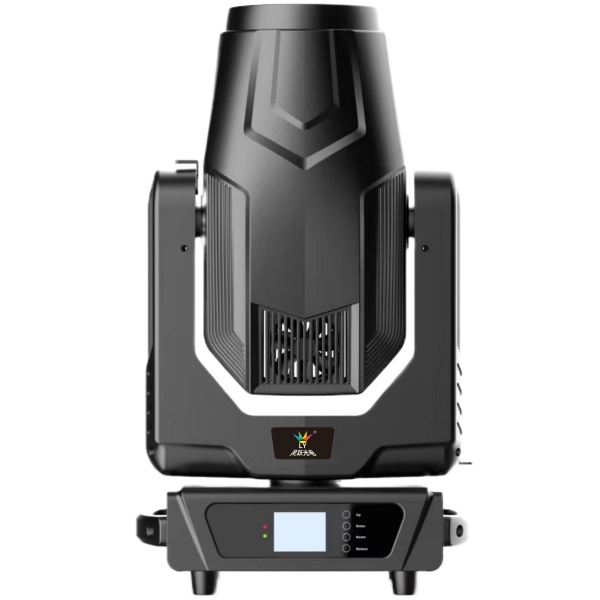

Product name: 500W LED beam spot wash
Product parameters:
Input voltage: AC100-240V,50/60Hz; Rated power: 580W
Light source: high brightness 500W LED module light source; light source life: 20000 hours
Output caliber: 138MM; channel mode: 24 channels
Rotation Angle: Horizontal scanning 540 degrees, vertical scanning 270 degrees (16bit precision scanning) electronic error correction
Dimming system: 0-100% linear adjustment; focusing system: linear adjustment 4 meters to 50 meters
Fogging system: 1 independent fogging effect, soft and natural light spot
Zoom angle: beam for 2.7 ~ 40 °, coloring 4-40 °, pattern 4-40 °
High-speed strobe: 0-30 times / second, adjustable speed strobe effect, strobe macro function
Color: 7 colors + white light, color half-color function
Color system: CMY + CTO color mixing system; fixed patterns: 12 fixed patterns + white light
Rotating pattern: 7 glass patterns, each glass pattern can be independently forward and reverse rotation
Prism system: 3 prisms and 8 prisms, each prism can be independently rotated forward and reverse
Macro function: console reset function, self-propelled mode, master-slave mode
Display mode: LCD, key + touch dual operation mode
Control Signal: International standard DMX512, with RDM function, online software upgrade, dial address code.
Cooling: axial fan to strengthen the cooling; appearance material: high temperature plastic
Safety device: with electronic temperature control overheating protection, overheating system failure electronic temperature control automatic power-off protection
Working environment: -20 degrees, 40 degrees; protection grade: IP20
Product net weight: 22.5KG; Product size: 38*27*65CM (L*W*H)
Package size: 54*45*61CM; Gross weight: 25KG
Dimension of air box: 73*50*88CM; Gross weight: 77KG.
Certification and report: CE/ROHS/ISO9001/quality inspection report
Standard accessories: hardware hook, aluminum light hook, signal wire, power cord, safety rope, instruction manual
Installation method: standing, upside down, side hanging
Customization requirements: Customization is not supported for less than 50 units, and the delivery time for customized models will be increased, 10-15 days (customization such as light source, silk screen LOGO, packaging, etc.)
Scope of application: KTV, music bar, bar, disco, nightclub, evening party, hotel wedding, large-scale commercial performance, etc.
